TeSys

TeSys GV3

断路器

GV3P

电动机保护

热磁式

3P

AC

AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2

50/60 Hz conforming to IEC 60947-4-1

35 mm symmetrical DIN rail: clipped
Panel: screwed (with 3 x M4 screws)

Any position

18.5 kW at 400/415 V AC 50/60 Hz
22 kW at 500 V AC 50/60 Hz
37 kW at 690 V AC 50/60 Hz

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu 在…上 440 V AC 50/60 Hz 符合 IEC 60947-2
6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

旋钮

40 A

30…40 A

560 A

690 V AC 50/60 Hz conforming to IEC 60947-2

690 V AC 50/60 Hz conforming to IEC 60947-2

40 A conforming to IEC 60947-4-1

6 kV IEC 60947-2

8 W

50000 次

50000 cycles for AC-3 at 440 V In

25 次/小时

Continuous conforming to IEC 60947-4-1

5 N.m 在…上 EverLink BTR 接线端子 25 mm²
8 N.m 在…上 EverLink BTR 接线端子 35 mm²

Yes conforming to IEC 60947-1

Yes conforming to IEC 60947-4-1

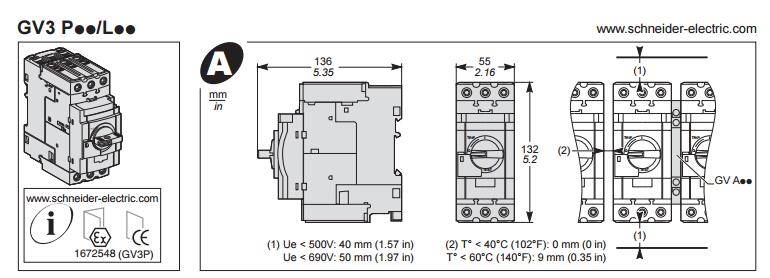

132 mm

55 mm

136 mm

0.96 kg

EN/IEC 60947-2
EN/IEC 60947-4-1
DIN 3852-Y
UL 60947-4-1

IECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
ABS

TH

IP20 conforming to IEC 60529

IK09

-20…60 °C

-40…80 °C

960 °C 符合 IEC 60695-2-1

3000 m

PCE

1

983 g

6.5 cm

14.6 cm

16 cm

P06

120

133.96 kg

80 cm

80 cm

60 cm

Green Premium 产品

符合
欧盟ROHS声明

是

中国 ROHS 声明
中国 ROHS 管控范畴之外的产品。物质声明报告

该产品必须经特定废物回收处理后弃置于欧盟市场，绝不可丢弃于垃圾桶中。

18 months
