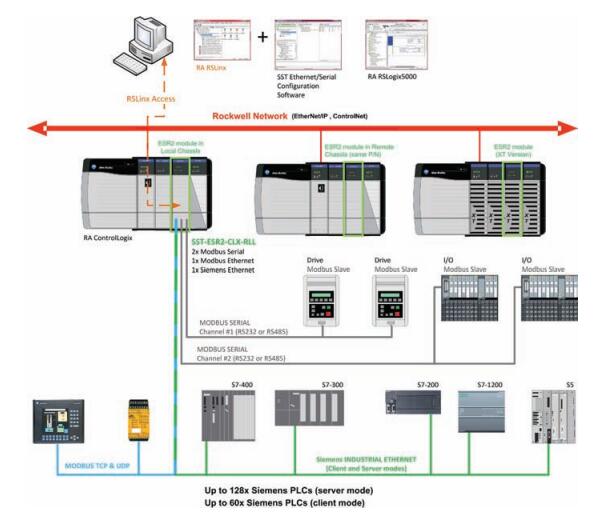

Description: Connects Allen-Bradley ControlLogix to Modbus and/or Modbus TCP network. Fully integrated into the Rockwell environment, the SST-ESR2-CLX-RLL includes simple-to-use software with AOP. Includes two independent Modbus channels and single Modbus TCP port.

Connectivity: Modbus, Modbus TCP

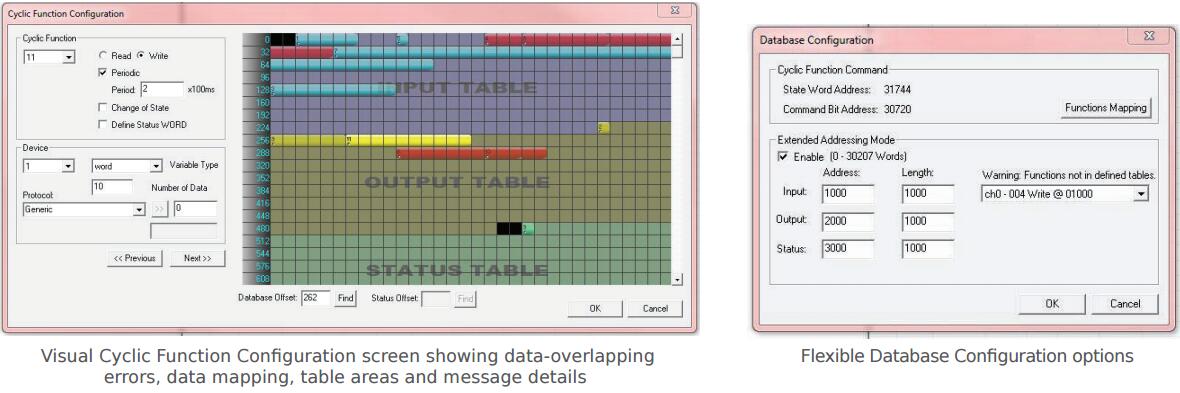

Features: Fully integrated into Rockwell Integrated Architecture Builder and ProsposalWorks; Simultaneously run Ethernet and Serial protocols; Direct I/O mapping; no ladder logic to write; I/O data refresh every PLC cycle, up to 255 Read/Write cyclic access per channel; New user-friendly configuration tool with visual cyclic function screen; Software package with advanced visual diagnostic tools included; Share up to 32K words of I/O process data with a Rockwell CPU using a single module; Independent, electrically isolated Serial channels

Specifications: See attached spec.





说明：将Allen-Bradley ControlLogix连接到Modbus和/或Modbus TCP网络。 SST-ESR2-CLX-RLL完全集成到罗克韦尔环境中，包括带有AOP的易于使用的软件。 包括两个独立的Modbus通道和一个Modbus TCP端口。

连接性：Modbus，Modbus TCP

特点：完全集成到罗克韦尔集成架构生成器和ProsposalWorks中； 同时运行以太网和串行协议； 直接I / O映射； 无需编写梯形图逻辑； I / O数据在每个PLC周期刷新一次，每通道最多255个读/写循环访问； 新的用户友好型配置工具，带有可视循环功能屏幕； 包含高级视觉诊断工具的软件包； 使用单个模块与罗克韦尔CPU共享多达32K字的I / O过程数据； 独立的电气隔离串行通道。



规格：参见附件规格。
